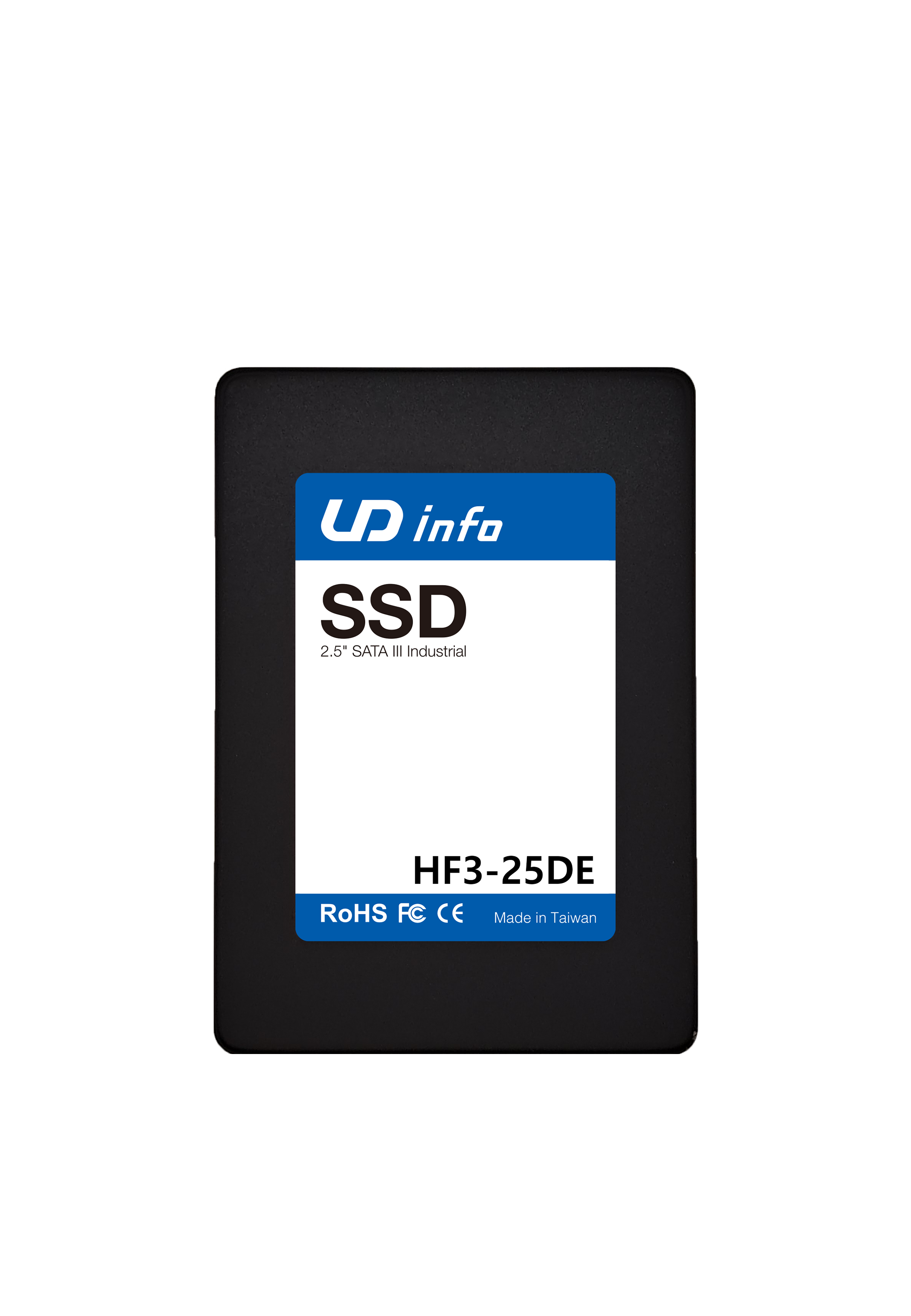

HF3-25DE
SATA Revision 3.1
-
Being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping.
-
Based on the standard 7-pin interface for data segment and 15-pin for power segment with a wide range capacity up to 2TB.
-
Reaches up to 550MB/s read & 510MBB/s write.
Download Files
Product Specifications
| Series Name | HF3-25DE | ||||
|---|---|---|---|---|---|
| Interface | SATA Revision 3.1 | ||||
| Capacity Coverage | 32GB ~ 2TB | ||||
| Capacity | |||||
| 3D TLC | 64GB ~ 2TB | ||||
| 3D pSLC | 32GB ~ 512GB | ||||
| Performance Overview | Seq. R : 550 MB/s ; Seq. W : 510 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 550 MB/s ; Seq. W : 510 MB/s | ||||
| 3D pSLC | Seq. R : 550 MB/s ; Seq. W : 510 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | 100.10mm(L) x 69.85mm(W) x 7.00mm(H) | ||||
| Technology | #S.M.A.R.T #conformal coating #Write Protect #Secure Erase | ||||
| Data Sheet |  |
||||
