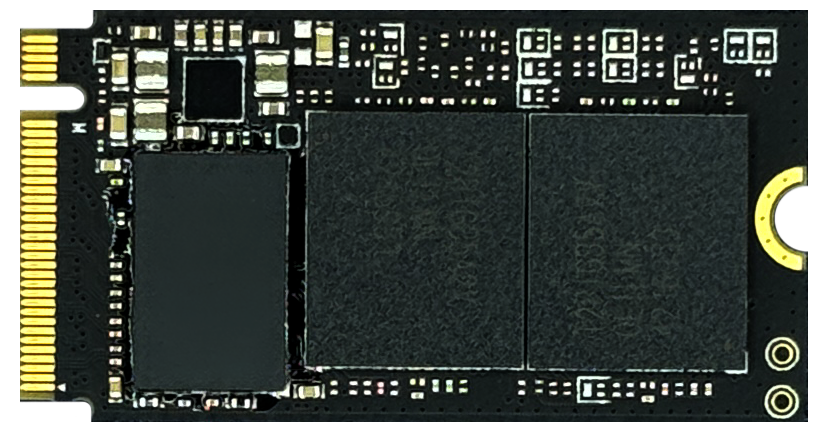

M2P-42DL
NVMe PCIe Gen4 x4
-
The device is designed based on the M.2 2242 standard. It offers up to 2TB.
-
Performance can reach up to 4,900MB/s read as well as 3,700MB/s write high performance based on 112Layers 3D TLC NAND flash.
Download Files
Product Specifications
| Series Name | M2P-42DL | ||||
|---|---|---|---|---|---|
| Interface | NVMe PCIe Gen4 x4 | ||||
| Capacity Coverage | 32GB up to 2TB | ||||
| Capacity | |||||
| 3D TLC | 128GB up to 2TB | ||||
| 3D pSLC | 32GB(40GB) up to 512GB(640GB) | ||||
| Performance Overview | Seq. R : 4900 MB/s ; Seq. W : 3,700 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 4900 MB/s ; Seq. W : 3,700 MB/s | ||||
| 3D pSLC | Seq. R : 4900 MB/s ; Seq. W : 4,300 MB/s | ||||
| Standard Operating Temperature | 0°C ~ 70°C | ||||
| Extended Operating Temperature | -40°C ~ 85°C | ||||
| Dimension LxWxH (mm) | 42mm(L) x 22mm(W) x 3.5mm(H) | ||||
| Technology | # # OPAL | ||||
| Data Sheet |  |
||||
