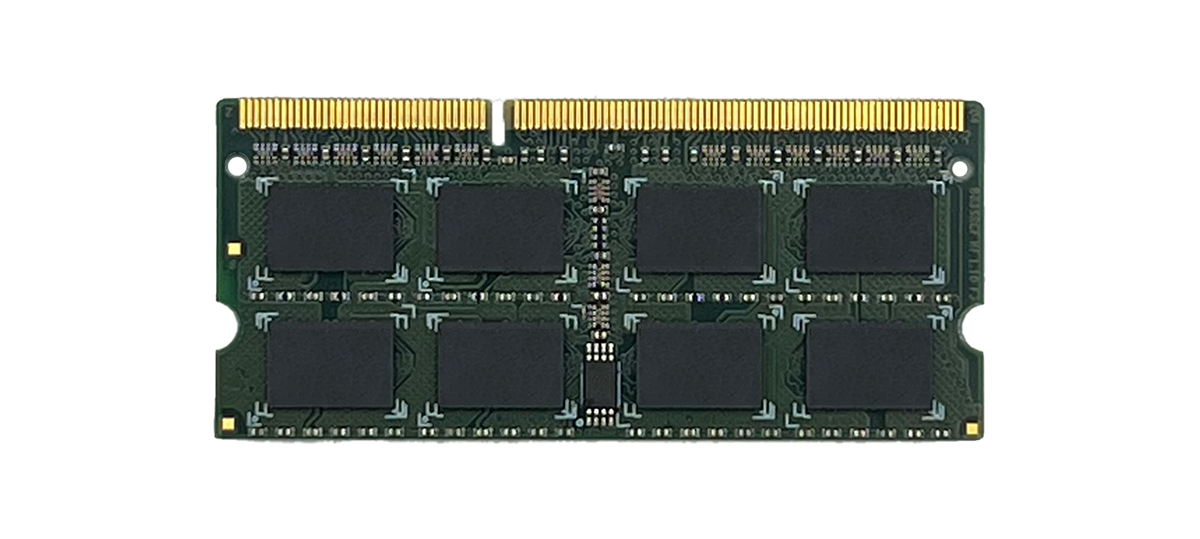

UD3E

Arrow Down Icon
ddr3 s 1

DDR3 / DDR3L

Download Files

Product Specifications

Series Name UD3E
Capacity Coverage 2GB ~ 8GB
Standard Operating Temperature 0~70°C
Extended Operating Temperature -40~85°C
Dimension LxWxH (mm) 67.60mm(L) x 30.00mm(W) x 1.00mm(H)
Module Type ECC SODIMM
Memory Technology DDR3
Density 2GB ~ 8GB
Voltage 1.5v / 1.35v
Data Rate 1066 MT/s ~ 1866 MT/s
Pin Count 204-Pin
